Complete guide for selection soft film ceiling light source
LED light source for soft film ceiling,making the entire space brighter, more transparent, and comfortable.

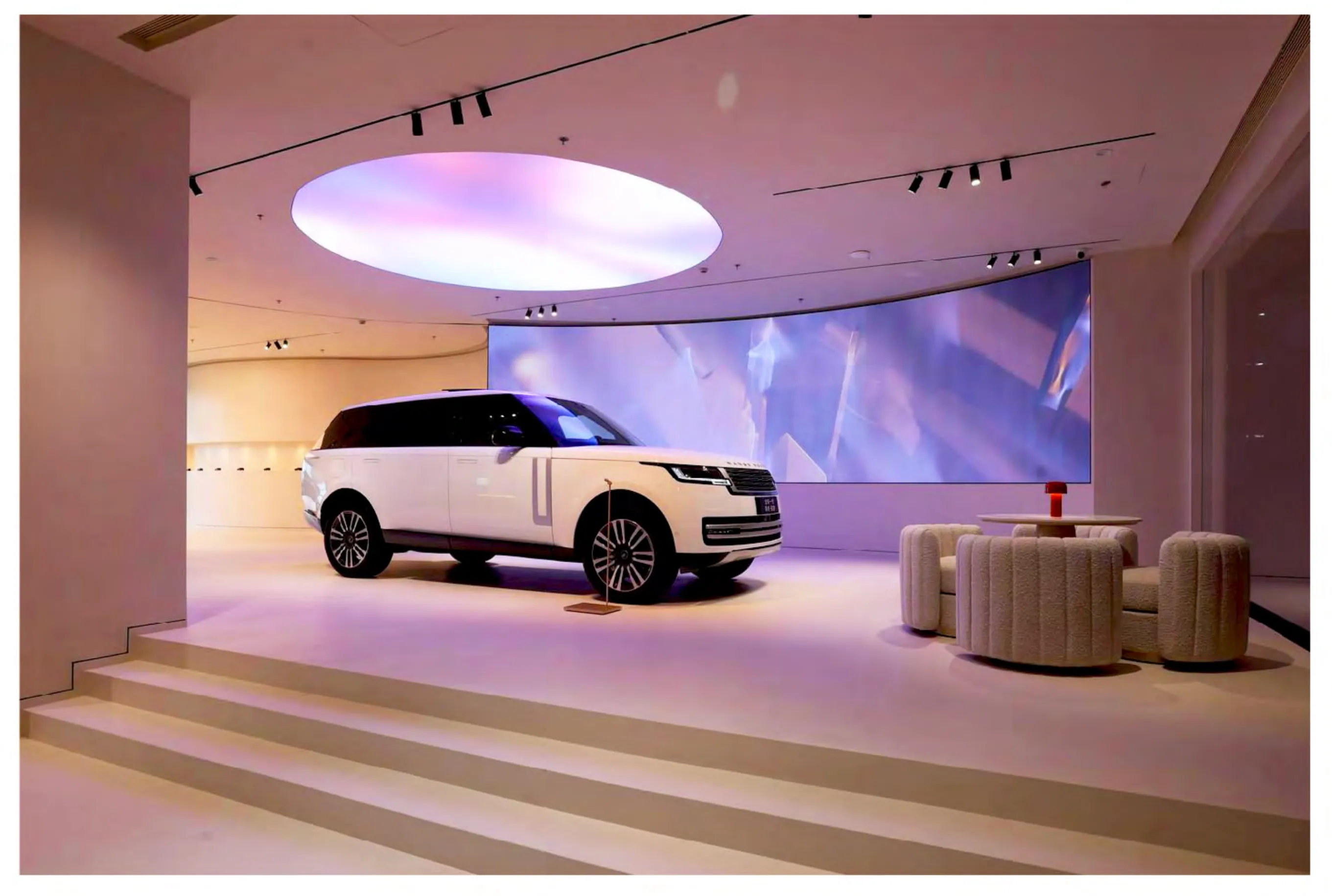

Have you noticed that more and more car 4S stores, commercial spaces, and office areas prefer to use soft film ceilings? Soft film ceilings provide even and soft lighting, making the entire space brighter, more transparent, and comfortable.
Of course, there are also some soft film ceilings that have uneven brightness after installation, with mosquitoes entering and half being bright and half not, which greatly affects the visual experience. Choosing the right light source t and control method can help improve the visual texture of soft film ceilings, saving maintenance costs and energy consumption in the later stage. Today, we will share with you the selection of soft film ceiling light source.
Light source selection criteria
1.1 The following four core parameters determine the quality of the light source:
CRI:The color rendering index ability of a light source on an object is called the color rendering index, which compares it with the appearance of the object under the same color temperature or reference light source. The color rendering coefficient of sunlight is defined as 100, and the closer the value is to sunlight, the more it can restore the color of the object itself.
CCT:correlated color temperature (CCT) is a measure of the "color" of a light source, expressed in Kelvin (K). It corresponds to the temperature of an ideal black body that would emit light of a similar "color." CCT is measured on a scale from 1,000 to 10,000 K. Different colors of light can impact our mood and behavior.
SDCM:Color tolerance refers to the allowable variation in emitted light color between different LEDs that are designed to produce the same color.In the LED lighting industry, color tolerance is usually measured in SDCM (Standard Deviation of Color Matching), also known as MacAdam steps.Lower SDCM means higher color consistency,Higher SDCM means more visible color differences.
Efficiency:Efficiency refers to the amount of light output from a LED light source in relation to the amount of electrical power it consumes. It is usually expressed as a ratio or percentage and measures how much light is produced per watt of electricity used. The higher the efficiency, the more energy-efficient the LED light is and the less heat it generates.
1.2 Selection of LED product types.

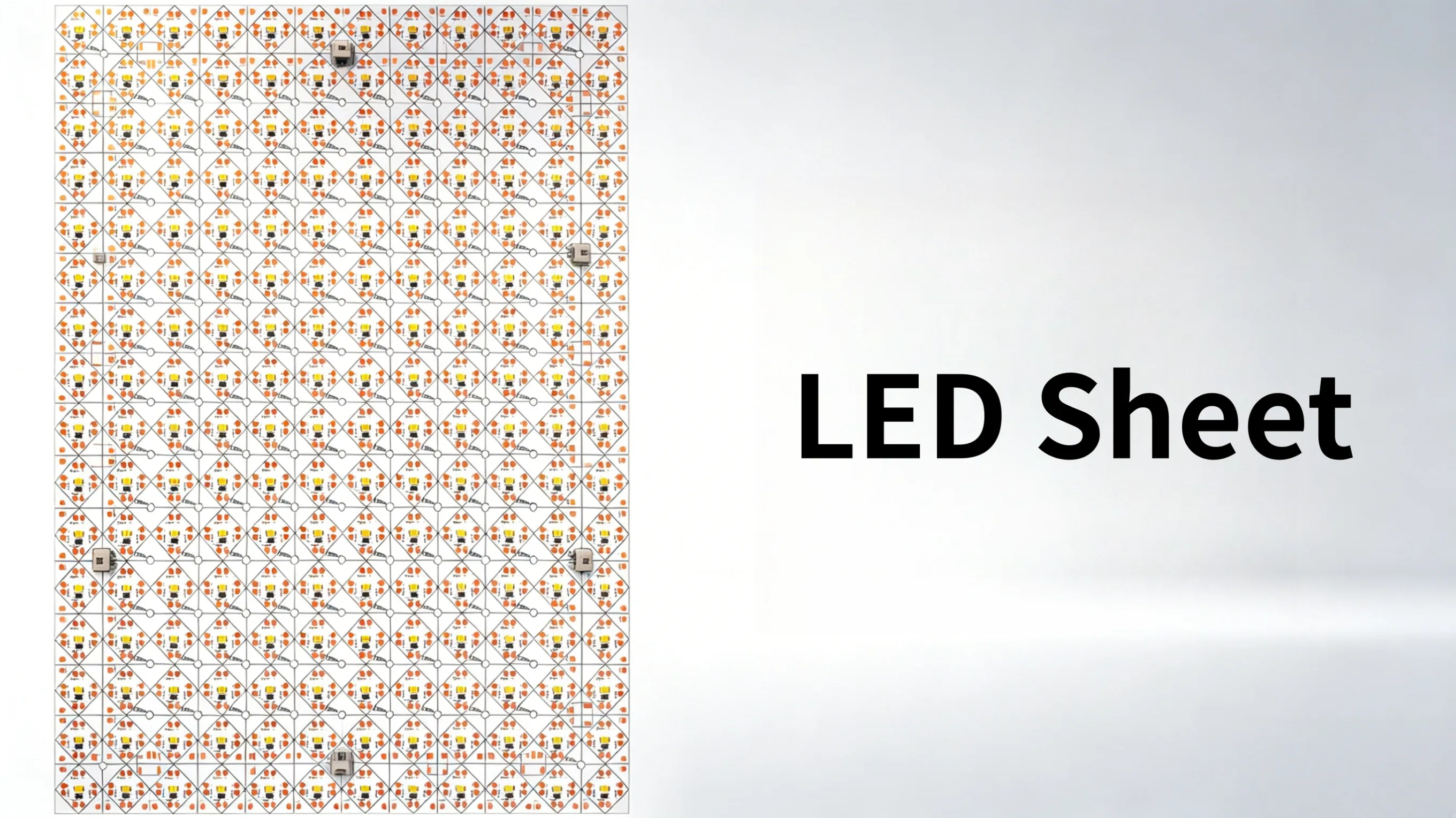

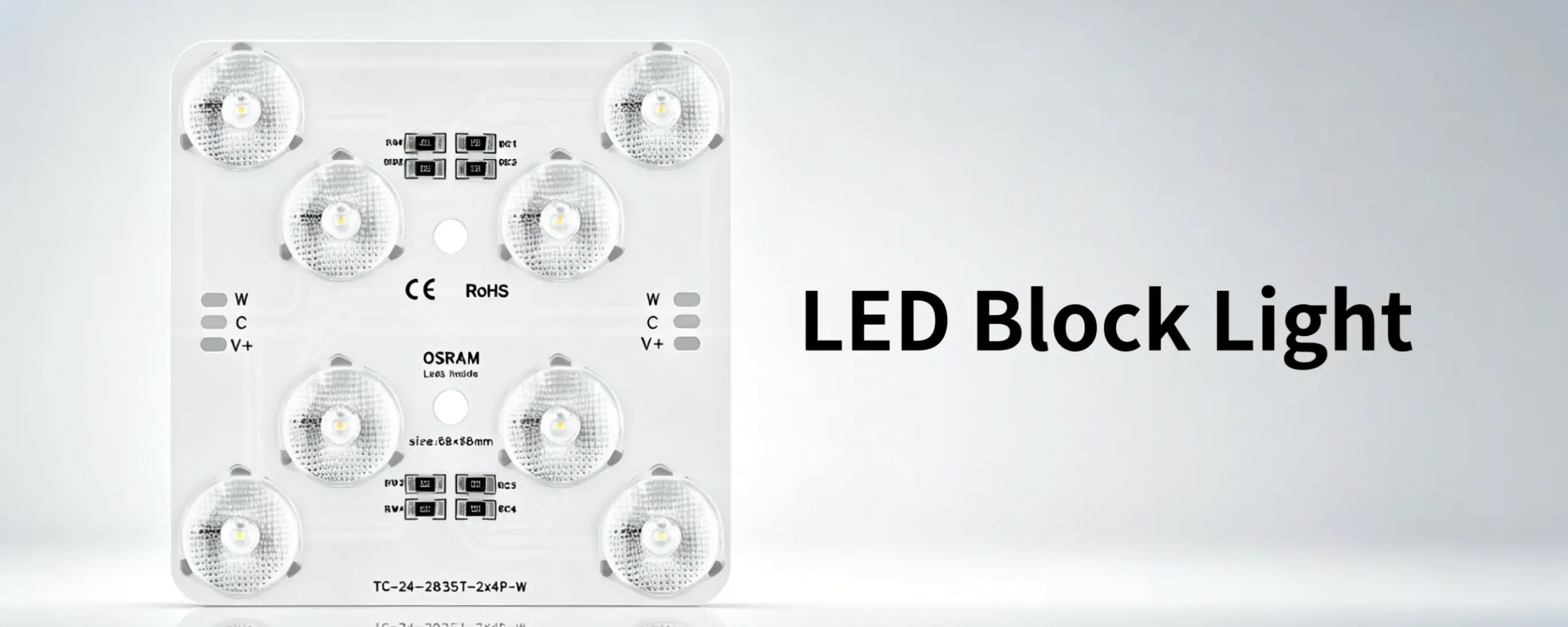

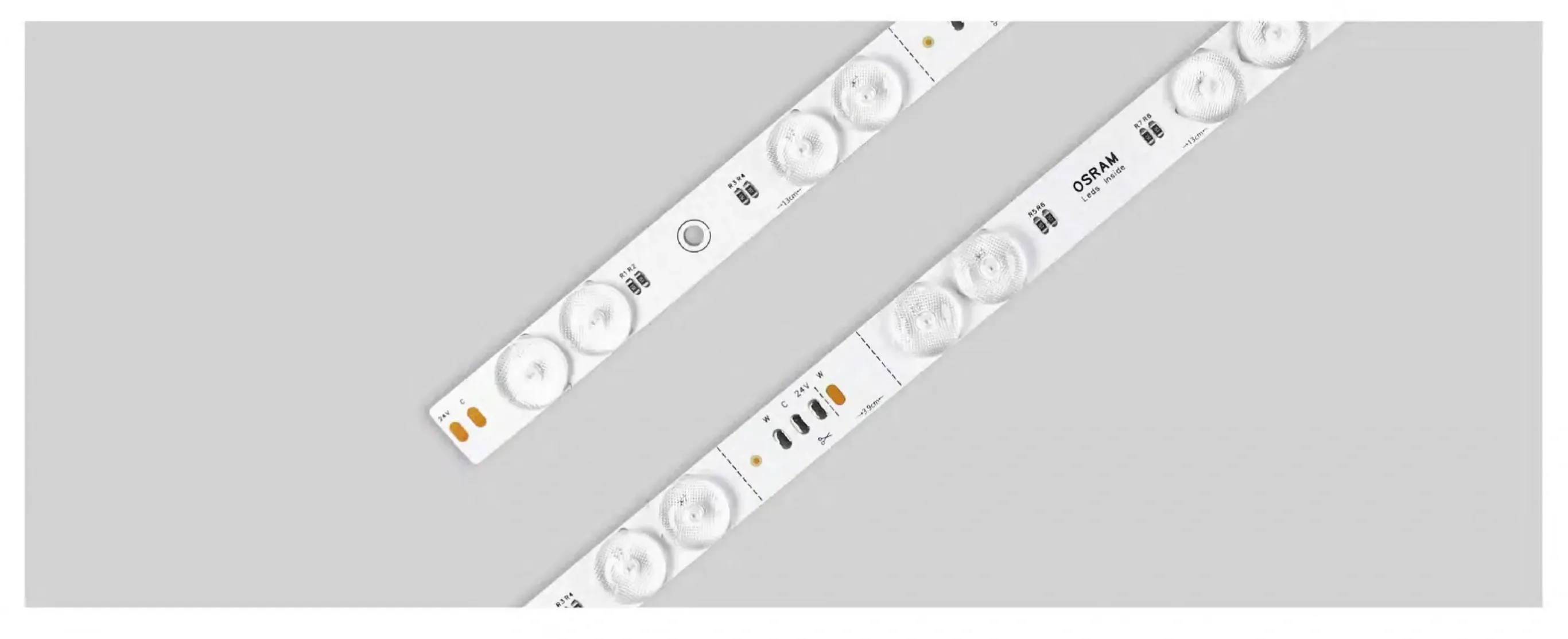

Soft film ceiling light sources mainly include diffuse reflection straight strip lights, diffuse reflection block lights, and LED sheet. Diffuse reflector light strips and block lights both have large angle lenses, wide illumination range, high brightness, and uniform brightness when applied to the light film as a whole. LED sheet has sufficient brightness, uniform light output, and no dark areas.
If the ceiling depth is 20 centimeters, the spacing between the light strips should be less than 20 centimeters to ensure that the light shines on the soft film without shadows, that is, the spacing between the light strips is less than the depth of the light box
The Led black light has secondary light distribution and a large effective light emission angle. Multiple flexible wires are used for electrical connection between the light boards, and the light source arrangement can be 360 degree three-dimensional bending. DIY free cutting and placement are particularly suitable for use in irregular soft film ceilings or light boxes.
The LED light board has controllable options for single color, color temperature, RGB, RGBW, RGB+CCT,is made of FPC material and can be cut into any shape,
