Car Showroom Stretch Ceiling Lighting: Design, LED Selection & Testing
Guide to car showroom stretch ceiling lighting, covering LED selection, colour quality, dimming, illuminance simulation and mock-up testing before installation.
Customers often form their first impression of a car before taking a test drive. How accurately the paint colour is shown,How clearly the body contours are defined and how comfortable the lighting feels are closely linked to the showroom lighting. A luminous stretch ceiling provides a large, evenly lit surface that supports the presentation of paintwork and body contours while creating a more comfortable lighting environment. This guide explains the benefits of stretch ceilings, the key design parameters and the different LED light source options. It also covers how to avoid LED hot spots and structural shadows, and how simulation and mock-up testing can support design, selection and installation.
Contents
1 Why More Car Showrooms Choose Luminous Stretch Ceilings
2 Lighting Requirements by Showroom Area
3 Five Key Design Parameters
4 How to Avoid LED Hot Spots and Structural Shadows
5 How to Choose LED Backlighting
6 Smart Dimming and Scene Control
7 DIALux Illuminance Simulation and Mock-up Testing
8 Frequently Asked Questions
9 Conclusion

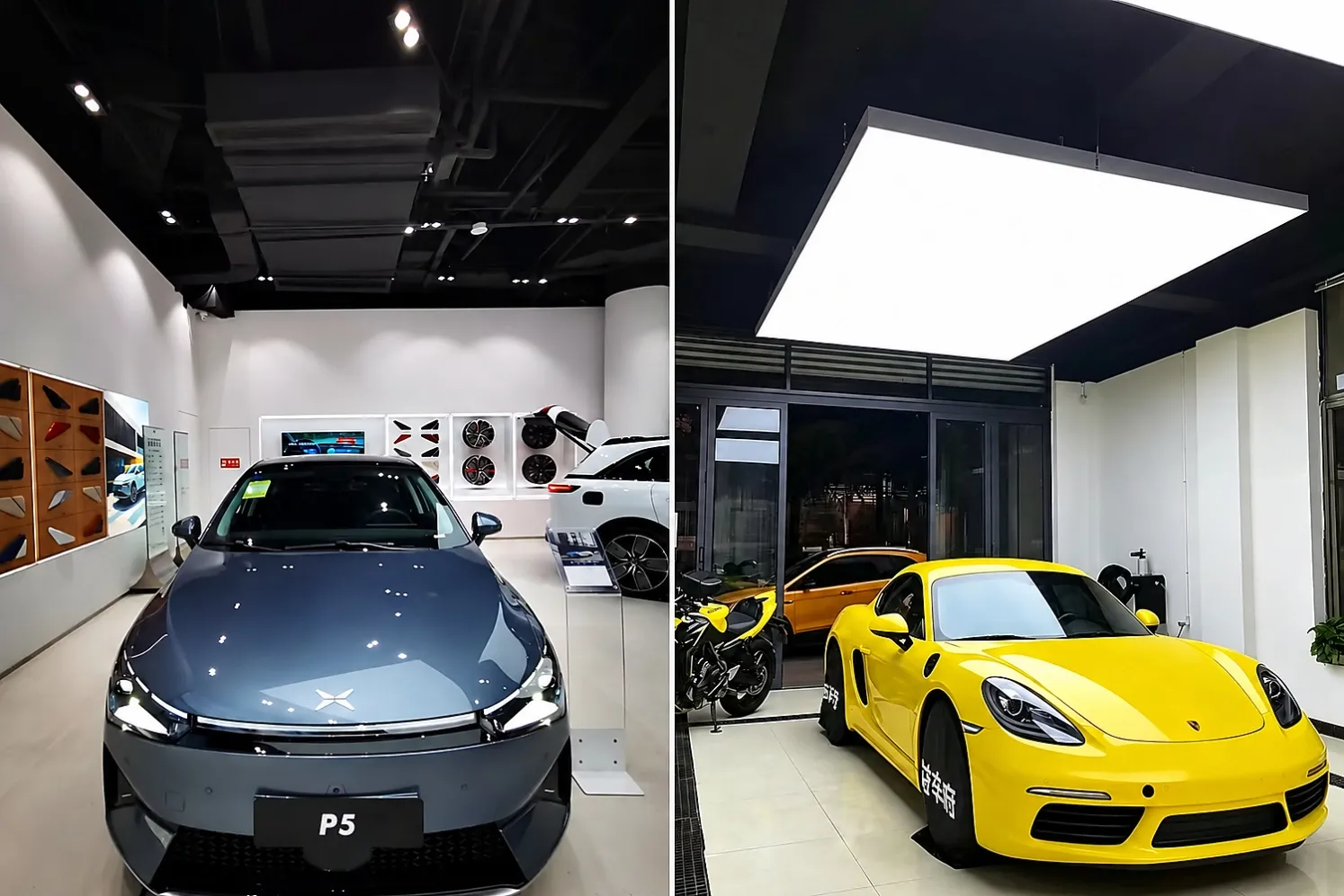

1 Why More Car Showrooms Choose Luminous Stretch Ceilings
1.1 Reduce Harsh Reflections and Reveal Body Contours
Cars have large surfaces and complex curves, and their paintwork and glass readily reflect bright points and the outlines of light sources. With closely spaced downlights or high-brightness point sources, customers may see a series of distracting bright spots rather than the full body contours. A large luminous stretch ceiling produces softer, more continuous light, helping the space look cleaner and reducing shadows.
1.2 Integrate Lighting into the Interior Design
Stretch ceilings can form part of the interior design. Circular, rectangular or custom-shaped luminous surfaces provide comfortable ambient light while contributing to the overall design. For new car launches or brand events, preset lighting scenes allow the atmosphere to change quickly without adding temporary decorative lighting.

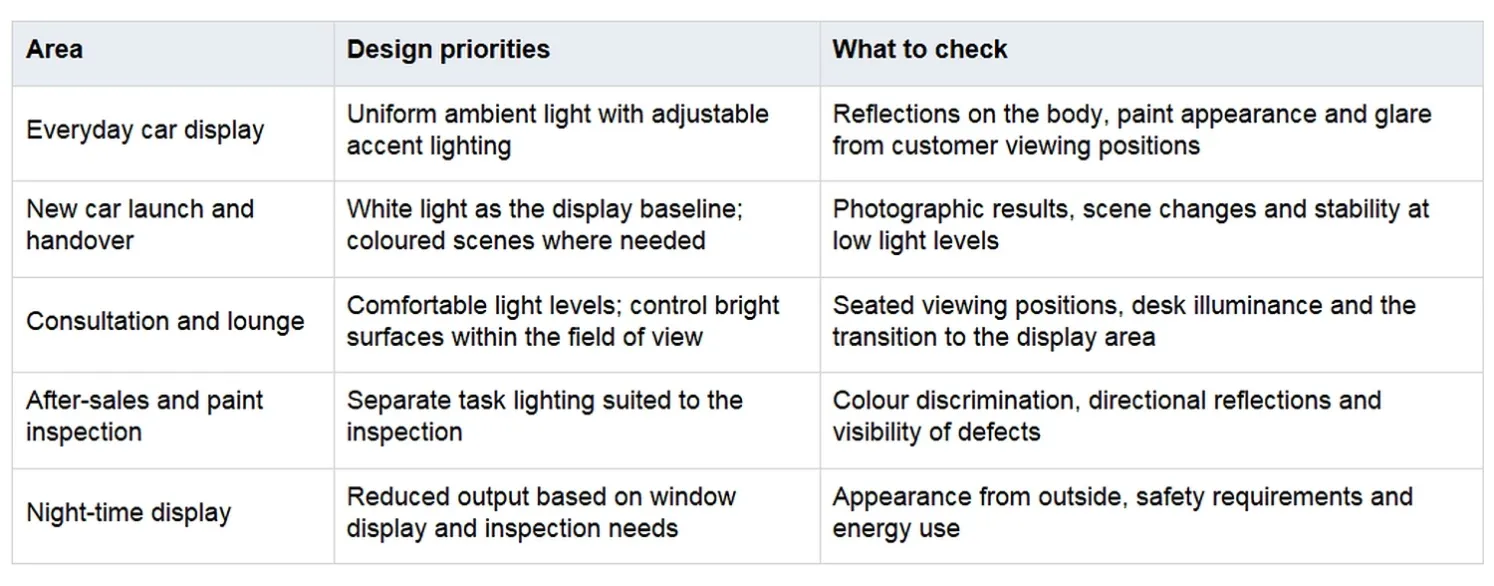

2 Lighting Requirements by Showroom Area
Car showrooms typically include display, handover, consultation and after-sales areas, each with different lighting needs.
3 Five Key Design Parameters
When assessing a stretch ceiling for a car showroom, consider whether the cars are adequately illuminated, how colours appear, whether the luminous surface is consistent and how comfortable it is to view. The following five groups of parameters provide a useful starting point for design and selection.
3.1 Illuminance and Luminance
Illuminance determines whether the cars and surrounding areas receive enough light, while luminance affects how bright the luminous ceiling surface appears. The result depends not only on the luminous flux and efficacy of the LED modules, but also on membrane light transmission, LED spacing, installation depth and power supply efficiency. Before installation, use DIALux to simulate illuminance and combine this with mock-up testing to assess ceiling luminance and uniformity. This helps refine the LED layout and reduce the risk of rework on site.
3.2 Colour Rendering Index (Ra)
The colour rendering index indicates how well a light source renders object colours. For car showrooms, give preference to light sources with Ra ≥ 90 to show paint colours, interior materials and details more naturally, with less colour distortion.
3.3 Colour Temperature
Colour temperature influences the showroom atmosphere and the appearance of paintwork and interiors. Warmer light creates a softer atmosphere, while cooler light gives the space a brighter, crisper feel. Consider the brand’s interior design, surrounding lighting and the appearance of the actual cars. Use a mock-up to compare paintwork and interiors under different colour temperatures before deciding on everyday display and event scenes.
3.4 Colour Consistency (SDCM)
SDCM indicates colour consistency between light sources: the lower the value, the less noticeable the colour difference. Across a large luminous stretch ceiling, local colour temperature differences can become more apparent, creating patches or inconsistent warm and cool areas that detract from the overall appearance. For car showrooms, give preference to LED light sources with colour consistency of ≤ 3 SDCM, and use the same production batch where possible, with supply organised by installation zone.
3.5 Uniformity
Uniformity affects whether the luminous ceiling looks even and continuous, and whether noticeable light and dark areas appear on the cars. Excessive LED spacing, insufficient installation depth, poor edge layouts or obstructions such as framing, sprinklers and access panels can cause visible LED points, dark areas and shadows. Consider the LED modules’ beam angle, LED spacing, cavity depth, membrane diffusion and backplate reflectance together. Pay particular attention to edges, corners and structural components. For large projects, confirm uniformity through illuminance simulation and mock-up testing before proceeding with the full installation.

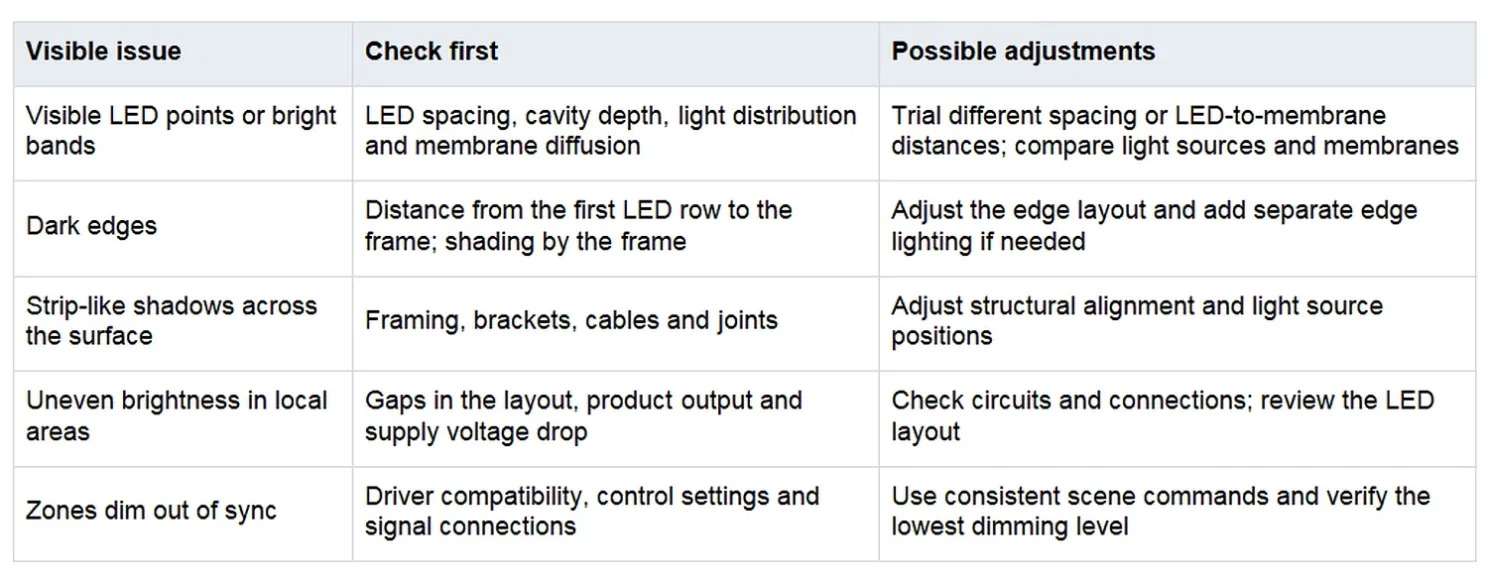

4 How to Avoid LED Hot Spots and Structural Shadows
5 How to Choose LED Backlighting
Yuyang’s rigid LED bars, LED modules and flexible LED lighting solutions can be assessed initially according to the project structure.

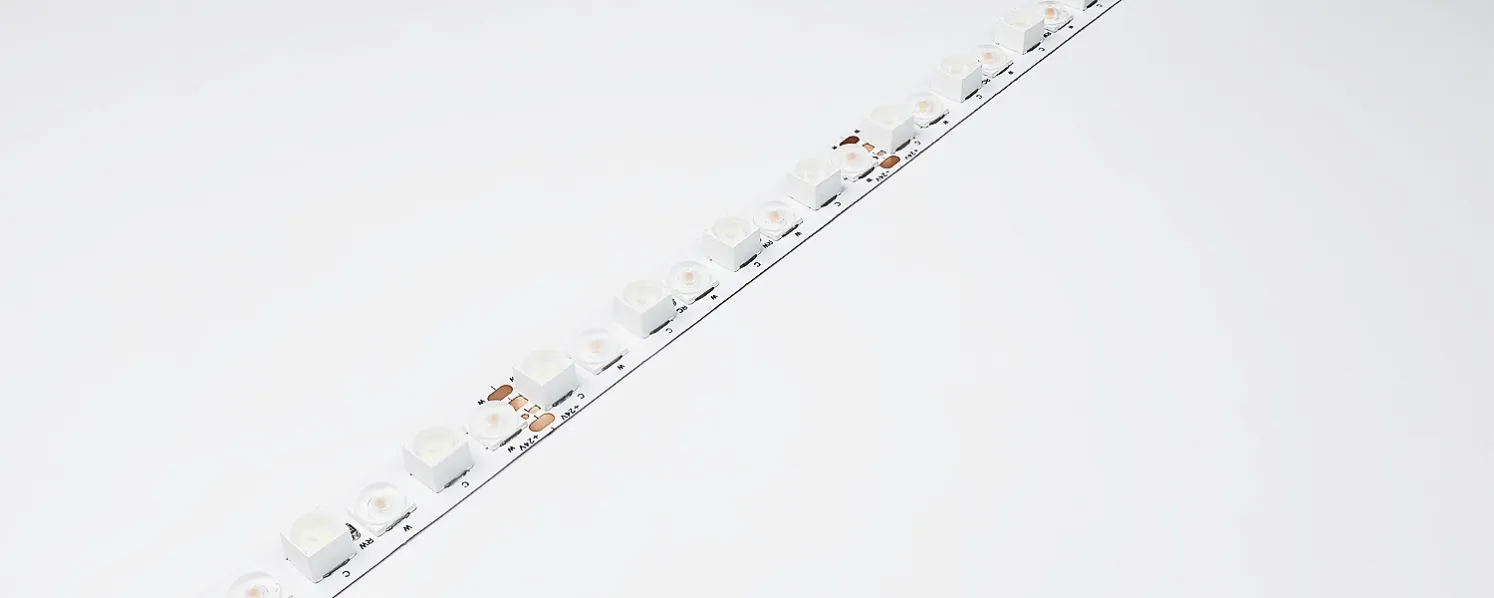

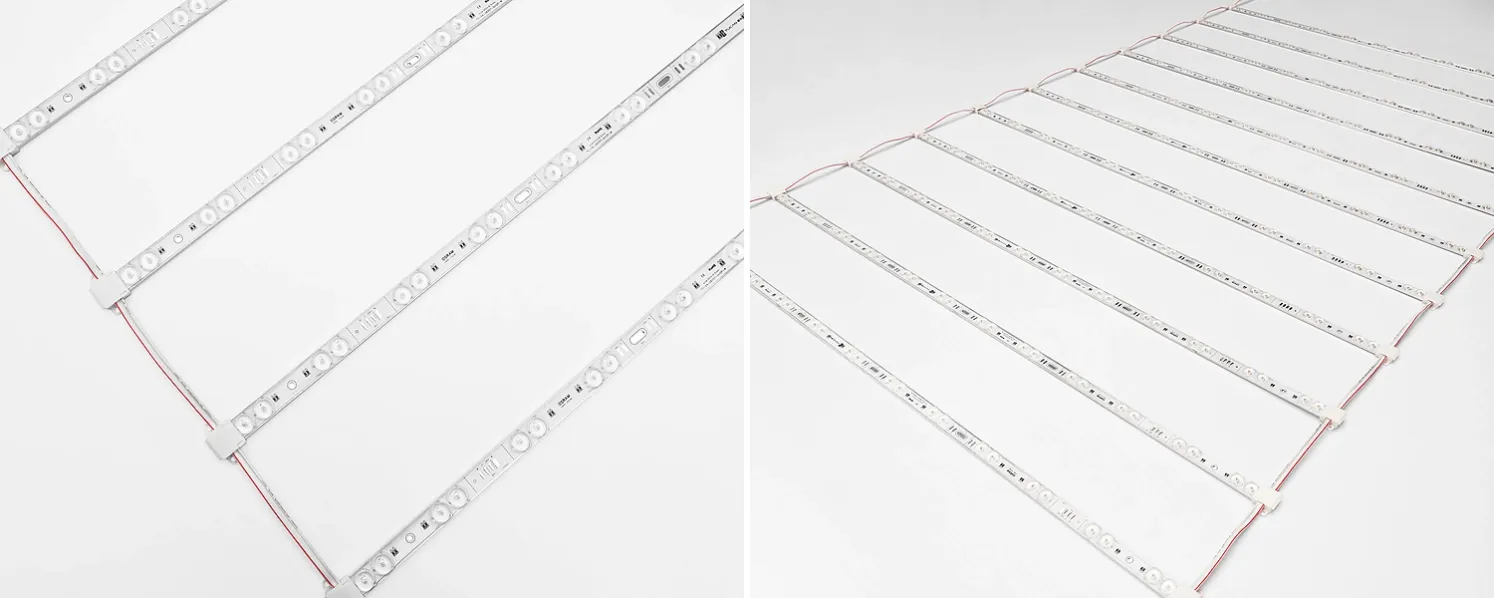

5.1 Rigid LED Bar
For rectangular or elongated stretch ceilings, LED RIGID LIGHT is an option to assess first.please click here for product details. Wide-angle rigid LED bars are straightforward to install in evenly spaced rows, with clear wiring routes and circuit zoning that help installers follow the layout drawings.

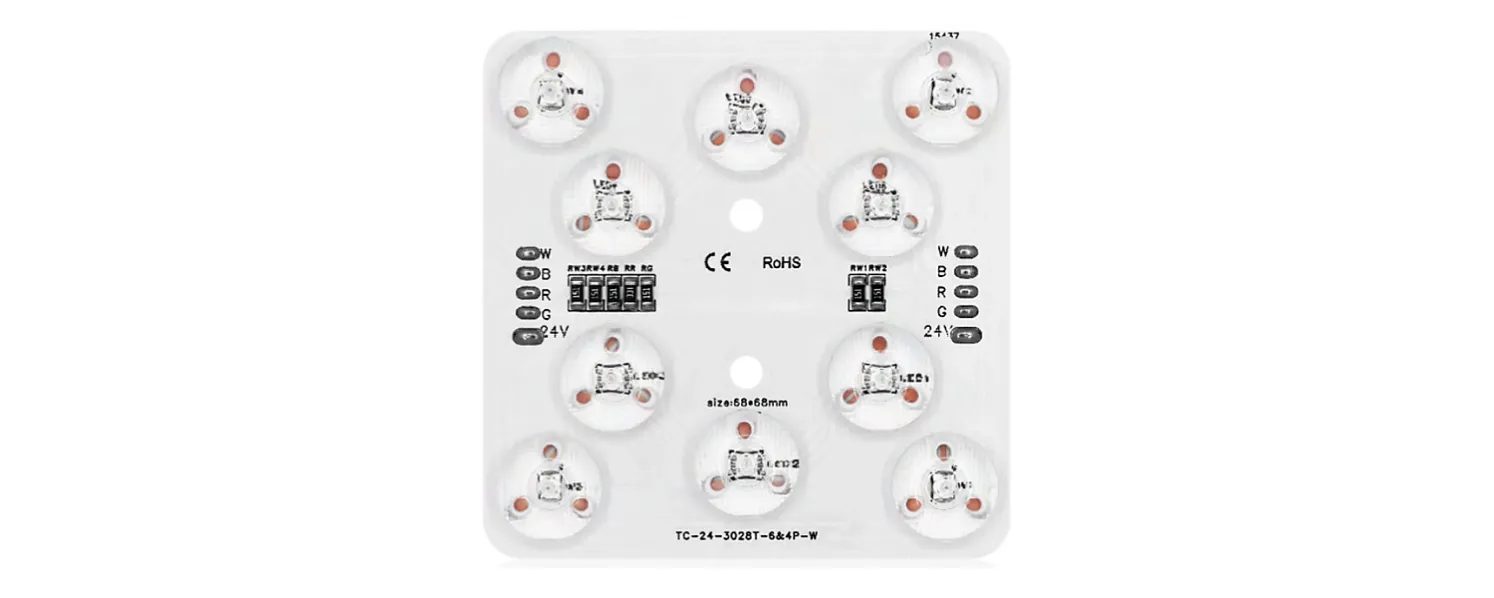

5.2 LED Module Light
For irregular shapes, curves, multiple corners or ceilings with internal structural components, LED MODULE LIGHT is an option to assess first. please click here for product details.Individual module placement makes it easier to follow the outline and work around framing, sprinklers, smoke detectors and access panels.
5.3 Flexible LED Light
For large stretch ceilings or large-format light boxes, LED Flexible Light is an option to assess first.please click here for product details. Its more continuous light source distribution makes it easier to achieve an even luminous surface, reducing the risk of bright spots, dark areas and shadows at joints.
These are initial selection guidelines. Confirm the lighting result with a mock-up that accounts for the selected model’s light distribution, installation depth, membrane properties and power supply conditions.

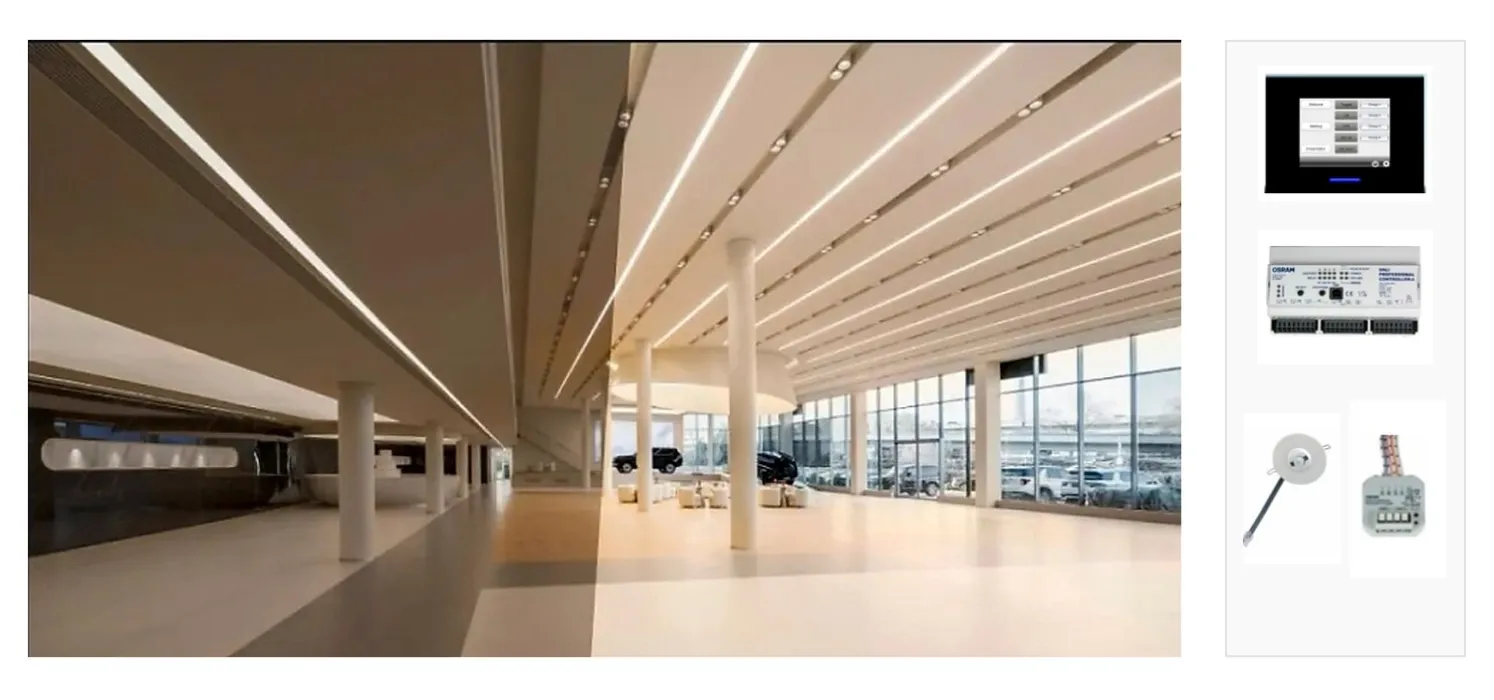

6 Smart Dimming and Scene Control

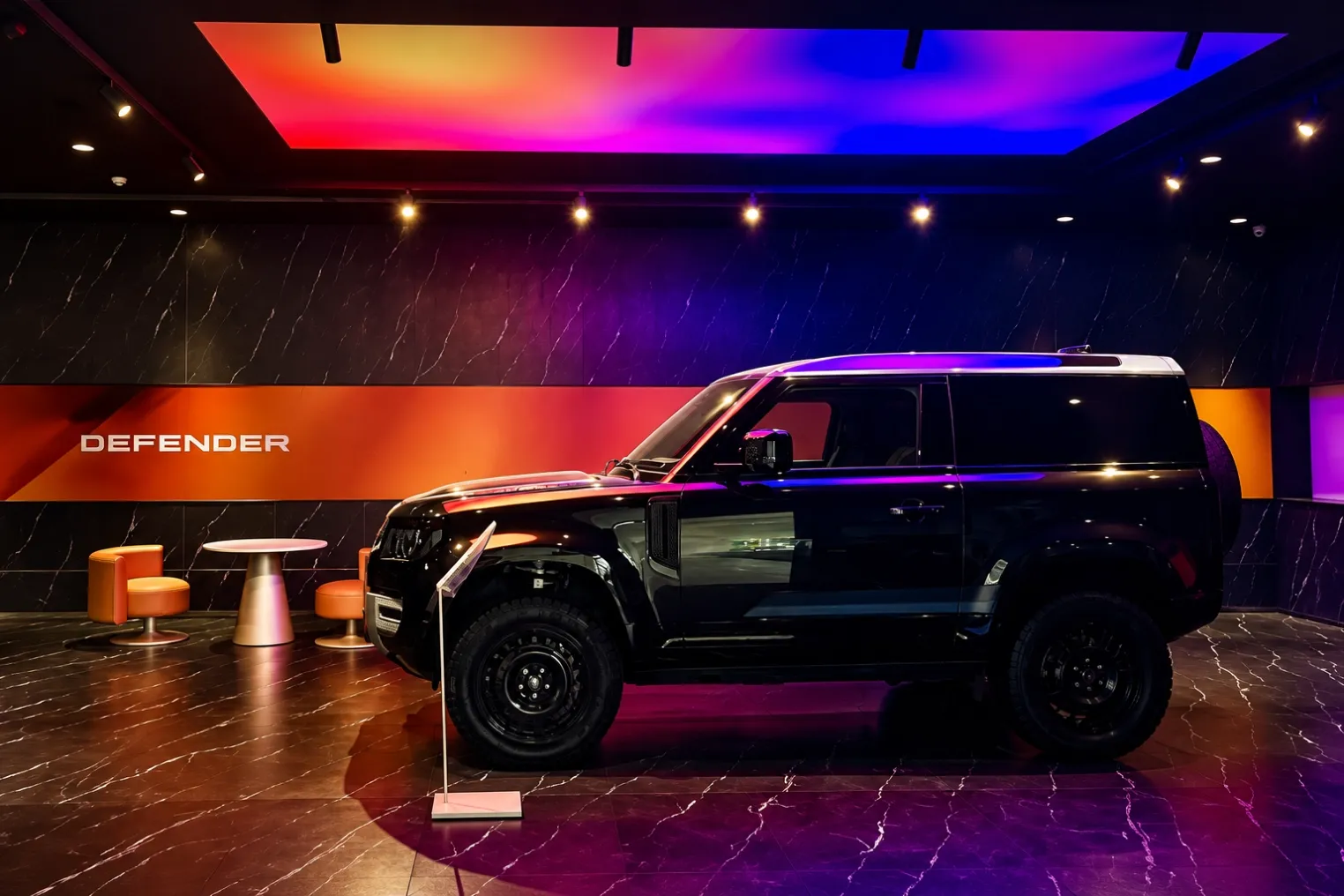

Set lighting scenes for everyday display, handover, consultation and night-time display, and control the stretch ceiling and accent lighting in separate zones. Use white light as the basis for everyday display, with preset coloured-light scenes for launches or handovers where required.
7 DIALux Illuminance Simulation and Full-Scale Mock-up Testing
Yuyang can support LED selection, illuminance simulation and mock-up testing using the project dimensions, mounting height, target illuminance and light source data.

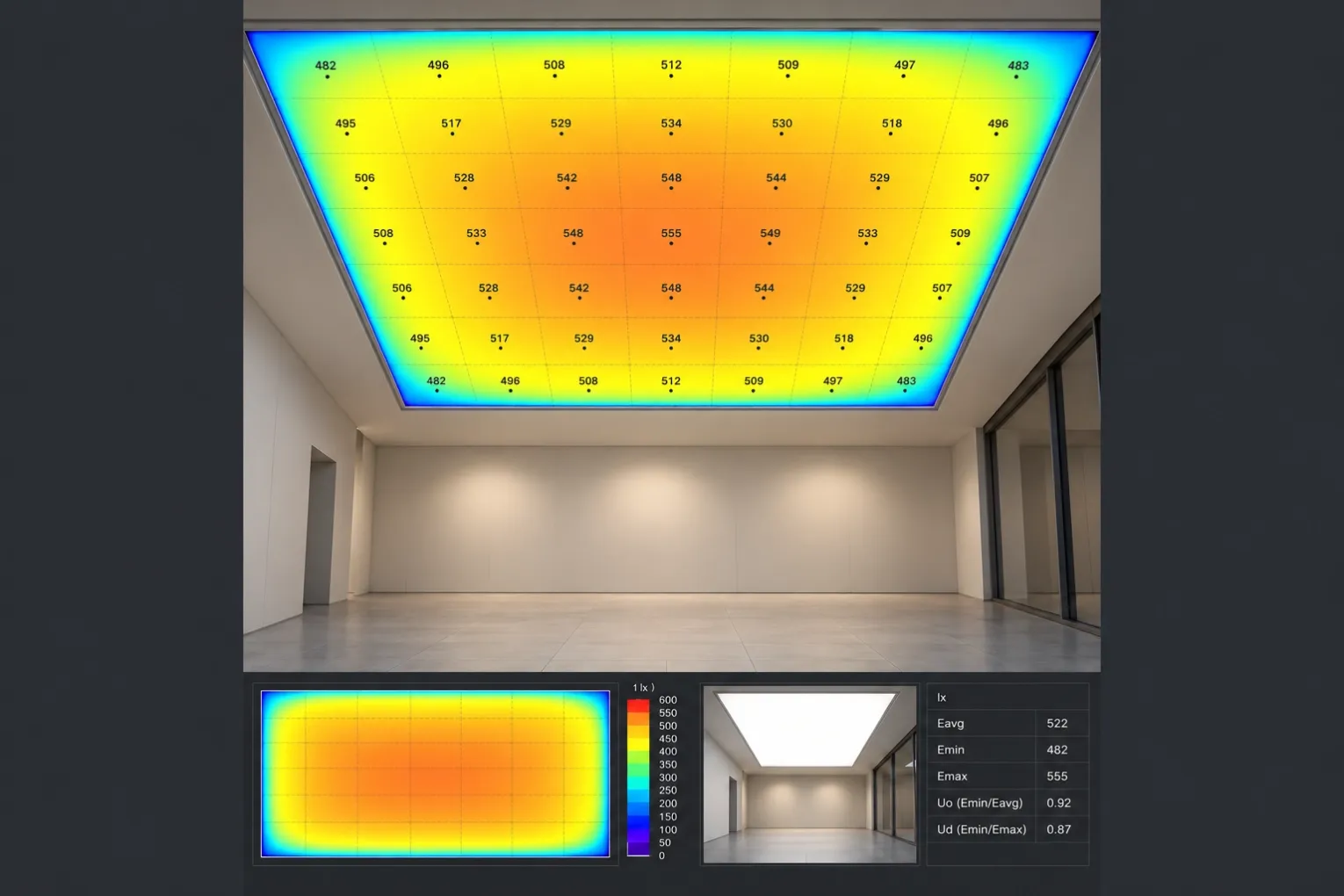

7.1 Assess Spatial Light Distribution with DIALux
DIALux can simulate illuminance and uniformity on the target plane, helping assess whether the cars, floor and surrounding areas will receive the intended lighting. Engineers use the room dimensions, mounting height, material reflectance, membrane light transmission and light source photometric data to evaluate LED quantities, spacing and power configurations, and compare alternative layouts. Simulation helps identify insufficient illuminance, uneven distribution or potentially high energy use before installation, providing a basis for further selection and mock-up testing.

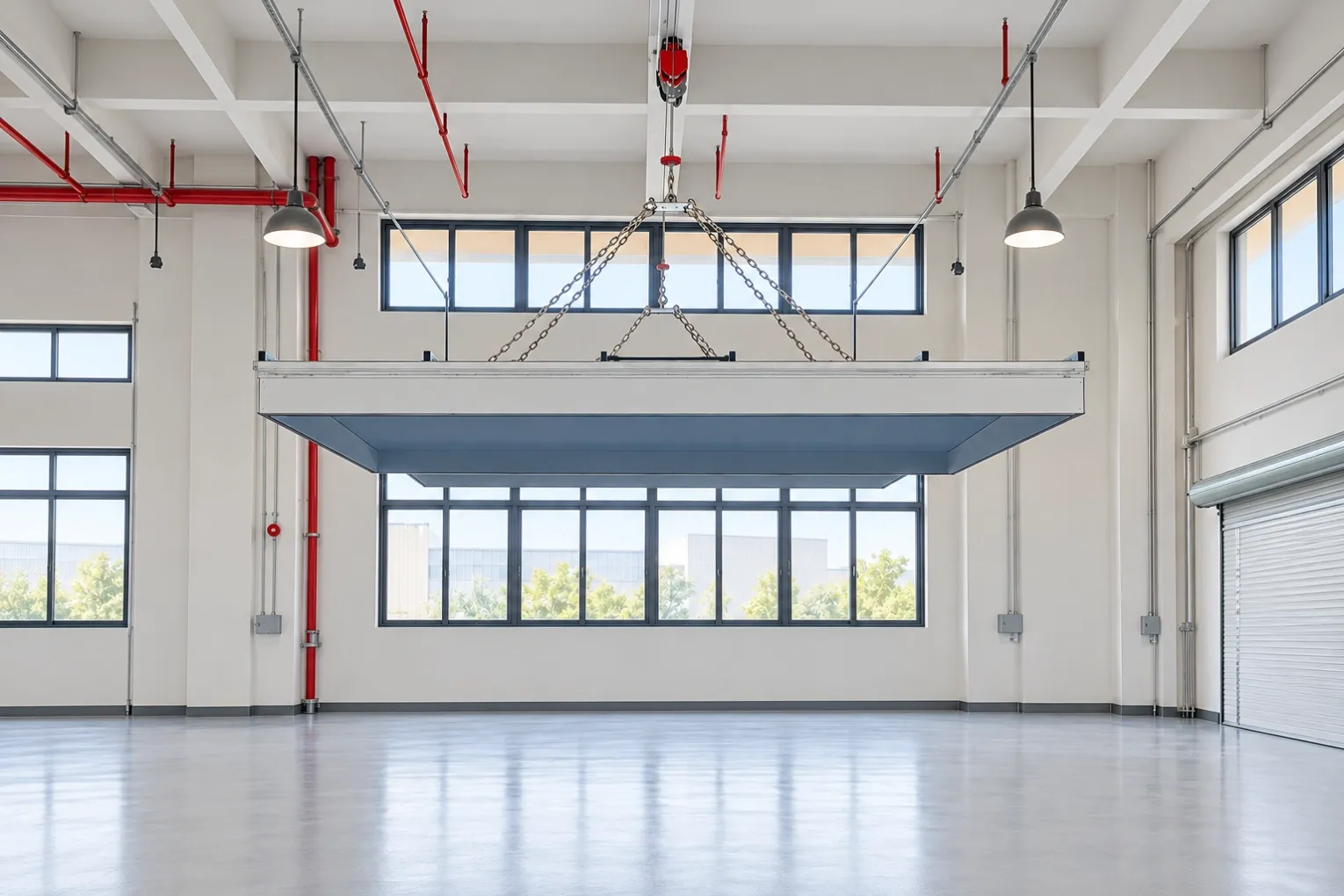

7.2 Assess the Luminous Surface and Visual Effect with a Mock-up
Build a mock-up using the project’s installation depth, membrane material, LED light source and spacing. Check for visible LED points, dark areas, edge shadows, colour consistency and dimming performance. Use the results to refine LED quantities, spacing and output power before finalising the design, reducing the risk of on-site adjustments and rework.
8 Frequently Asked Questions
8.1 Can a Stretch Ceiling Replace All Spotlights?
No. A luminous stretch ceiling provides soft, uniform ambient light and reduces distracting reflections on the paintwork. Spotlights are better suited to highlighting details such as body contours, wheels and interiors, adding depth and a visual focal point. Combining ambient and accent lighting balances viewing comfort with the presentation of the cars.
8.2 Is There a Standard LED Spacing or Installation Depth?
Based on previous projects and mock-up tests, we have compiled reference relationships between installation depth and LED centre-to-centre spacing for specific light sources and membranes. Contact us for a reference table covering installation depth and LED layout.
8.3 Do High-CRI LEDs Guarantee Accurate Paint Colour Presentation?
High colour rendering is a useful selection criterion, but it cannot by itself guarantee the appearance of every paint finish. Colour temperature, spectrum, colour consistency, surrounding reflections and accent lighting all influence visual assessment.
8.4 How Can Dimming Stay Synchronised Across a Large Stretch Ceiling?
Where possible, avoid multiple independent controllers for a single luminous stretch ceiling. A common master controller with power expansion units (amplifiers) is recommended, so that dimming and scene commands are sent centrally. This helps reduce differences in brightness, colour synchronisation and response time between zones.
9 Conclusion
A luminous stretch ceiling does more than illuminate a car showroom. Uniform, comfortable light, combined with good colour rendering and colour consistency, brings out the cars’ colours, material qualities and design, making them more appealing. Achieving this requires lighting parameters and LED layouts suited to each area, followed by illuminance simulation and mock-up testing to identify problems early and reduce on-site adjustments and rework.
